MOTOR PROTECTION CIRCUIT – 140M-F8E-C32

Description

Overview

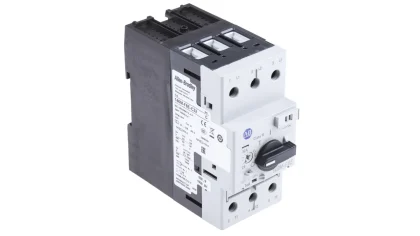

The Allen-Bradley 140M-F8E-C32 Motor Protection Circuit Breaker (MPCB) redefines reliability in motor control and protection. Built by Rockwell Automation, it combines precision engineering with rugged performance to safeguard motors from overloads, short circuits, and phase loss. Designed for industrial efficiency, it ensures smooth operation, fast response, and complete peace of mind in demanding environments.

Performance and Protection

This MPCB delivers exceptional functionality, offering disconnecting means, short-circuit magnetic protection, and thermal overload protection all in one compact device. Its high current-limiting capability minimises fault energy, protecting connected equipment while maintaining consistent uptime. Rated from 0.1 to 45 A, it suits a wide range of motor applications, from light-duty machinery to high-power industrial drives. Moreover, its manual switching feature simplifies maintenance and system isolation, helping operators act swiftly and safely.

Integration and Compatibility

Engineers can seamlessly pair the 140M-F8E-C32 with the Allen-Bradley 100-C contactor range to achieve Type 2 coordination without oversizing. This pairing not only enhances efficiency but also optimises cost by maintaining protection integrity while reducing unnecessary hardware. Additionally, its modular design allows customisation to meet specific project or load requirements.

Design Advantages

Compact yet powerful, this circuit breaker simplifies panel layout, freeing valuable space. Its ergonomic design ensures quick installation, while its intuitive adjustment options allow precise settings for each motor type. Consequently, it empowers control engineers to design smarter, safer systems.

Key Features

• Rated current range: 0.1–45 A

• Provides overload, short-circuit, and manual disconnect protection

• High current limiting for reduced fault energy

• Type 2 coordination with Allen-Bradley 100-C contactors

• Compact, modular, and customizable design

Conclusion

In short, the 140M-F8E-C32 offers world-class motor protection with intelligent design, making it a trusted choice for reliable and efficient control systems worldwide.
