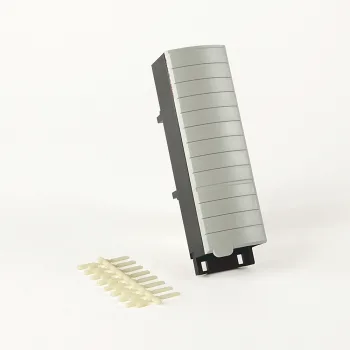

The Allen-Bradley 1756-TBNH Block Terminal ControlLogix 20-Pin Screw Clamp provides secure, efficient, and adaptable connectivity for ControlLogix I/O systems. Designed for accuracy and reliability, this removable terminal block supports fast, error-free wiring in modern industrial automation environments. Its compact and modular form helps engineers streamline control cabinet layouts while ensuring stable and long-lasting electrical connections.
Design and Build Quality
Engineered for strength and precision, the 1756-TBNH terminal block integrates directly into the ControlLogix I/O chassis. It attaches securely to the module front without tools, enabling quick installation and removal during maintenance. The 20-position screw-clamp terminals, rated under NEMA standards, deliver firm, vibration-resistant connections for dependable signal transmission.
Built with industrial-grade materials, this terminal block resists heat, mechanical stress, and vibration, ensuring long-term reliability even in heavy-duty plant environments. Its durable construction makes it ideal for continuous operation in manufacturing and process control facilities.
Performance and Specifications
The 1756-TBNH supports solid and stranded copper wires rated for 90°C or higher, handling sizes from 22 to 14 AWG. It operates efficiently within a 0°C to 60°C temperature range, maintaining stable performance under 30g shock conditions. With a torque capacity of 1.36 Nm, it guarantees a secure grip and consistent electrical contact.
Its compact dimensions of 5.51 x 4.41 x 5.71 inches make it space-saving yet powerful, allowing flexible configuration in tight control panels.
Key Benefits for Automation Applications
This terminal block boosts data reliability and simplifies maintenance. Isolating field wiring from sensitive modules improves safety and reduces downtime. The producer-consumer communication model supports multiple controllers, enhancing synchronisation and system responsiveness across ControlLogix networks.
Conclusion
In summary, the Allen-Bradley Block Terminal ControlLogix 20-Pin Screw Clamp – 1756-TBNH delivers robust connectivity, high flexibility, and durable performance. Its precision engineering, compact design, and reliable operation make it the preferred choice for demanding industrial automation systems seeking long-term stability and simplified maintenance.
